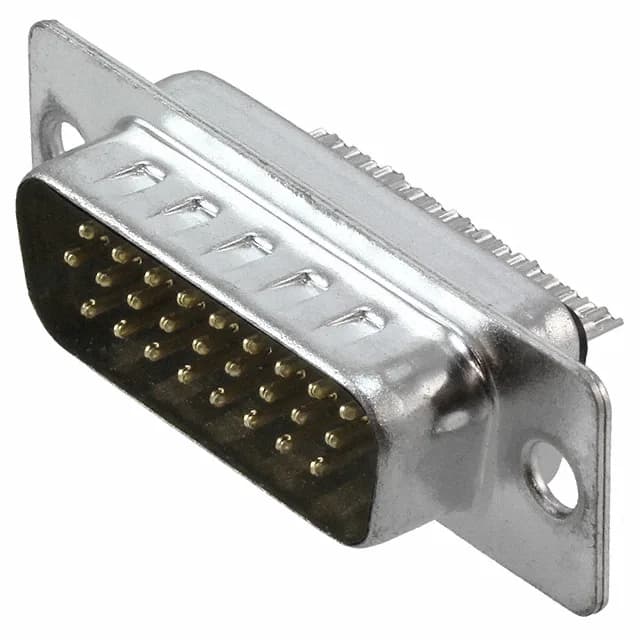

Assmann WSW Components A-HDS 26 LL/Z
MPNA-HDS 26 LL/Z
Active
CONN D-SUB HD PLUG 26P SLDR CUP
$1.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | D-Sub, High Density |
| Voltage rating | 250V |
| Current rating | 3A |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -20°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 26 |
| Contact finish thickness | Flash |
