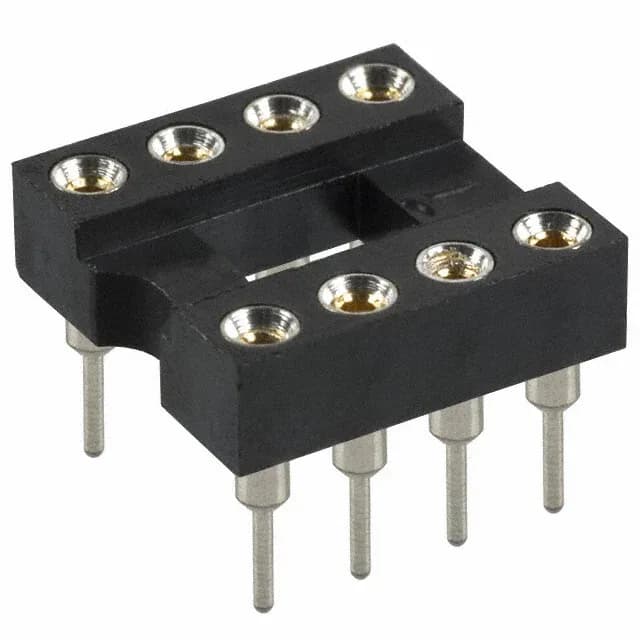

Assmann WSW Components AR 08-HZL-TT
MPNAR 08-HZL-TT
Active
CONN IC DIP SOCKET 8POS TIN
$0.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Thermoplastic, Polyester |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 4mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Number of positions or pins | 8 (2 x 4) |
