Assmann WSW Components ASUB-277-25TP30
MPNASUB-277-25TP30
Active

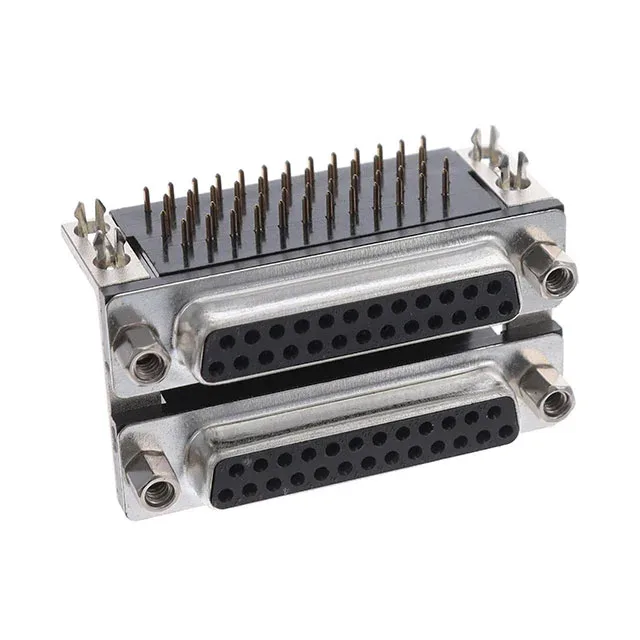

D-SUB DUAL PORT F/F 25PIN
$7.87Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | 3A |
| Shell size, connector layout | 3 (DB, B); 3 (DB, B) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Primary material | Metal |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2, 2 |
| Positions | 25, 25 |
| Contact finish thickness | Flash |
