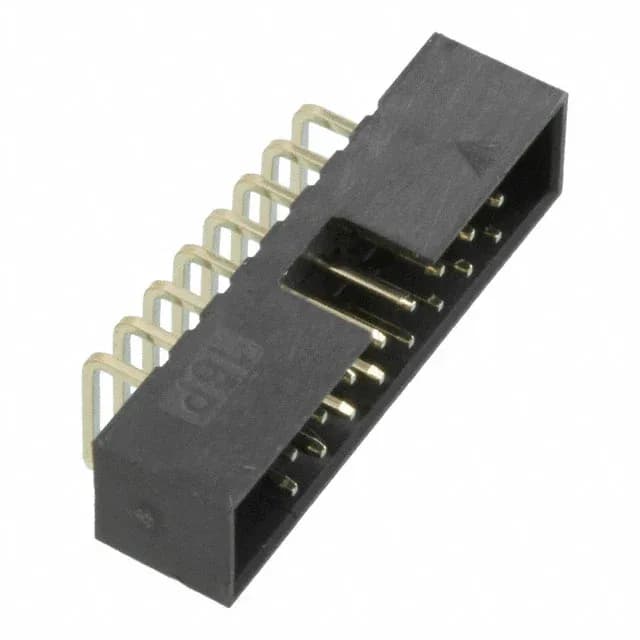

Assmann WSW Components AWHW2 16A-0202
MPNAWHW2 16A-0202
Active
CONN HEADER R/A 16POS 2MM
$1.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1.5A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | Flash |
