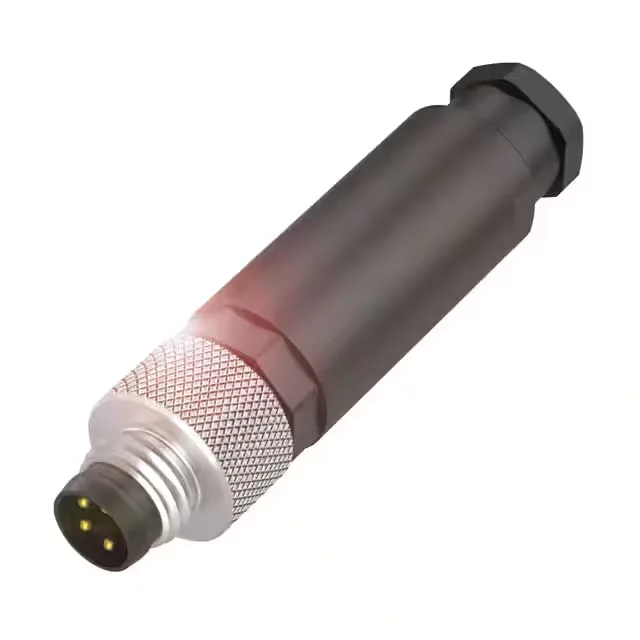

Balluff BCC06Z7
MPNBCC06Z7
Active
CONN RCPT MALE 4POS SCREW
$41.58Ref. price · indicative, final on quote
RoHSNot applicable
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 60VAC/DC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.138\" ~ 0.197\" (3.50mm ~ 5.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Brass |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Polybutylene Terephthalate (PBT) |
| Package | Bag |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Screw |
| Positions | 4 |
| Shell size - insert | M8-4 |
