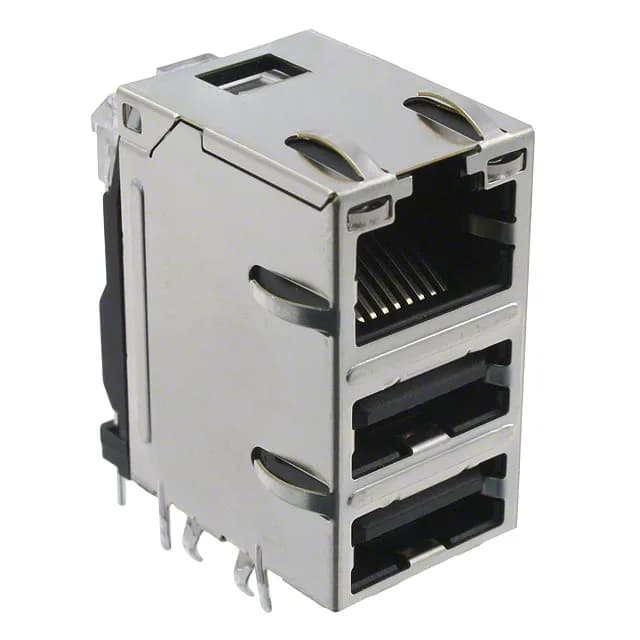

Bel Fuse Inc. 08C2-1X1T-36
MPN08C2-1X1T-36
Active
CONN JACK 1PORT 100 BASE-T PCB
$5.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMagJack®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MagJack® |
| Mounting | Through Hole |
| Connector type | RJ45 with USB A, Dual |
| Operating temperature | -40°C ~ 85°C |
| LED color | Green, Orange - Yellow |
| Shield material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Height above board | 1.170\" (29.72mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 4 |
