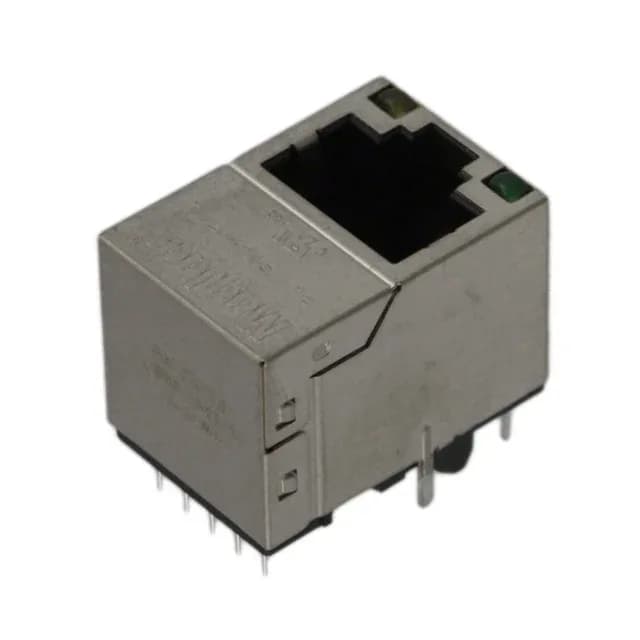

Bel Fuse Inc. V890-1AX1-A1
MPNV890-1AX1-A1
Active
CONN JACK 1PORT 1000 BASE-T PCB
$6.6400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMagJack®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MagJack® |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Yellow |
| Shield material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Height above board | 0.909\" (23.10mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | Vertical |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 8 |
