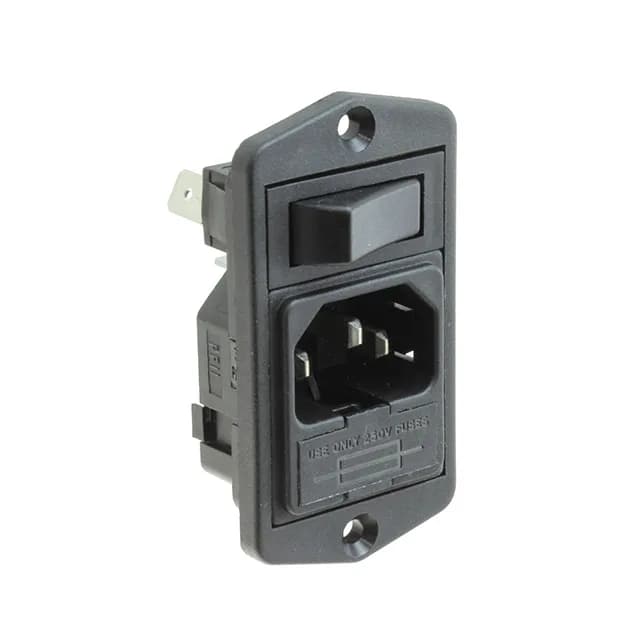

Bulgin Polysnap® BVA power entry module, order code BVA01/Z0000/01, IEC 320-C14 receptacle, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount flange, quick-connect 0.250" (6.3mm) termination.
| Parameter | Value |
|---|---|
| Series | Polysnap® BVA |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 33.00mm x 53.20mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder |
| Positions | 3 |
The BVA01/Z0000/01 is the 3-position member of Bulgin's Polysnap® BVA series of IEC 320-C14 power entry modules. Rated 10 A at 250 VAC, unfiltered commercial grade, with quick-connect 0.250" (6.3mm) termination for panel-mount flange installation.
The module includes an on-off switch and an integral fuse holder that accepts a fuse (not included), allowing the panel to serve as both power inlet and primary circuit protection point.
The module is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE. The housing material meets UL94 V-0.
