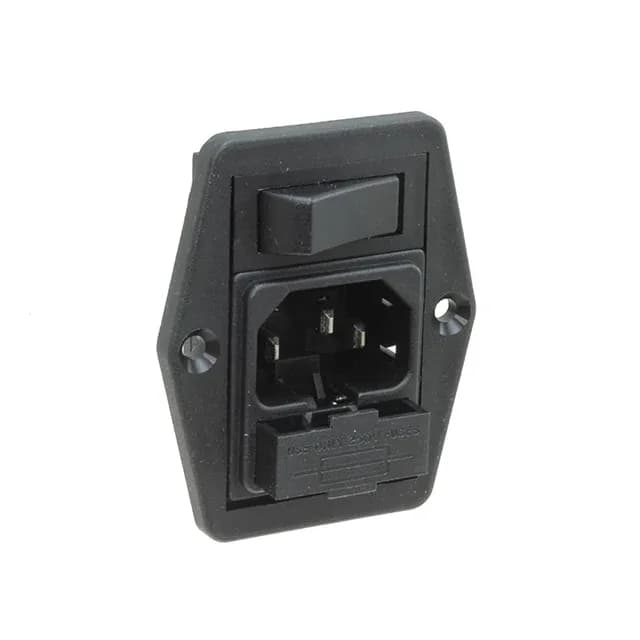

Bulgin Polysnap® BVB power entry module, order code BVB01/Z0000/01, IEC 320-C14 receptacle, 3 positions, 10 A, 250 VAC, panel mount with flange, quick-connect 0.250" (6.3 mm) termination, unfiltered commercial, switch on-off, fuse holder.
| Parameter | Value |
|---|---|
| Series | Polysnap® BVB |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 33.00mm x 53.20mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder |
| Positions | 3 |
The BVB01/Z0000/01 is a 3-position IEC 320-C14 power entry module from Bulgin's Polysnap® BVB series, combining a receptacle, switch on-off, and a fuse holder in a single panel-mount flange assembly. Rated 10 A at 250 VAC, the unfiltered commercial module terminates via quick-connect 0.250" (6.3 mm) tabs and accepts a user-supplied fuse.
The module is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE. The housing material is rated UL94 V-0.
