Bulgin BZM27/Z0000/53B — Power Entry Modules

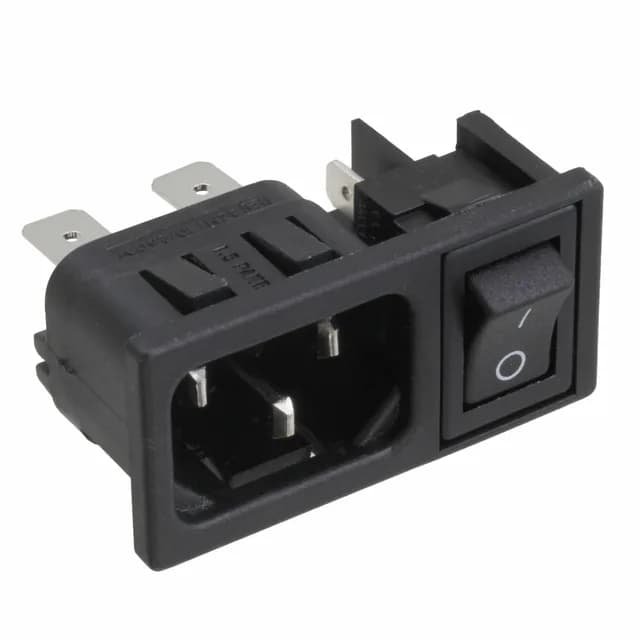

BZM27/Z0000/53B Bulgin Polysnap BZM IEC C14 Power Entry

MPNBZM27/Z0000/53B
Active

Bulgin Polysnap® BZM power entry module, order code BZM27/Z0000/53B, IEC 320-C14 receptacle, 3 positions, 10 A, 250 VAC, unfiltered commercial, quick-connect 0.250" (6.3 mm) termination, panel mount snap-in, switch on-off.

$11.3400Ref. price · indicative, final on quote
Bulgin BZM27/Z0000/53B datasheet (PDF)
RoHSROHS3 Compliant
SeriesPolysnap® BZM
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

BZM27/Z0000/53B specifications
ParameterValue
SeriesPolysnap® BZM
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 45.90mm x 21.30mm
Material flammability ratingUL94 V-0
Approval agencyCSA, ENEC, UL, VDE
PackageBulk
TerminationQuick Connect - 0.250\" (6.3mm)
Panel thickness0.059\" (1.50mm)
Switch featuresSwitch On-Off
Accomodates a fuseNo
Positions3

Product details

IEC C14 inlet with switch

The BZM27/Z0000/53B is the 3-position IEC 320-C14 receptacle member of Bulgin's Polysnap® BZM power entry module series. Rated 10 A at 250 VAC, unfiltered commercial grade, with a built-in on-off switch and quick-connect 0.250" (6.3 mm) termination.

Panel cutout and snap-in fit

Panel mount snap-in requires a rectangular cutout 45.90 mm x 21.30 mm and accepts panel thickness 0.059" (1.50 mm). The housing carries UL94 V-0 flammability rating and approvals from CSA, ENEC, UL, and VDE.

ROHS3 compliant per the listed documentation.

Frequently asked questions

Where can I buy BZM27/Z0000/53B and how do I get a price?

BZM27/Z0000/53B is orderable through distribution.

What compliance documentation does Bulgin provide for BZM27/Z0000/53B?

The module carries CSA, ENEC, UL, and VDE approvals and is ROHS3 compliant.
