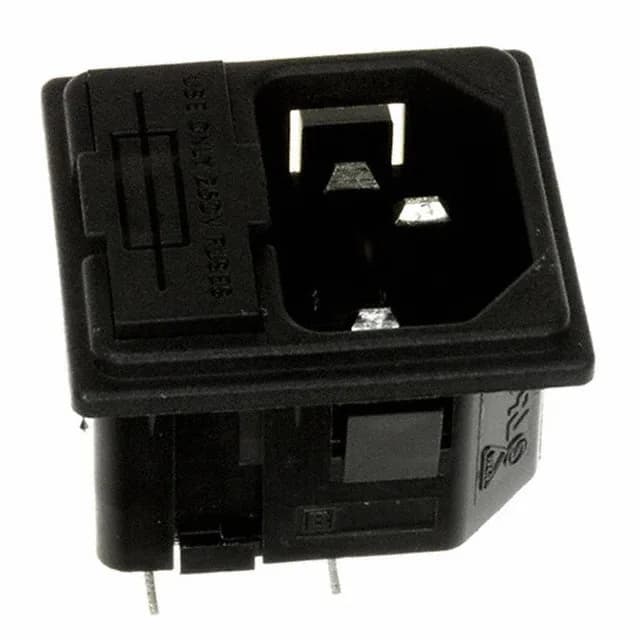

Bulgin PF series power entry module, order code PF0011/15/28, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount snap-in, solder termination.
| Parameter | Value |
|---|---|
| Series | PF |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.30mm x 31.12mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Drawer Included |
| Positions | 3 |
The PF0011/15/28 is a 3-position IEC 320-C14 power entry module from Bulgin's PF series, combining a male-blade receptacle with a fuse drawer in a single panel-mount assembly. Rated 10 A at 250 VAC, the unfiltered commercial module mounts via snap-in to panels 0.059" (1.50 mm) thick and terminates through solder connections.
The module is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE.
No pin-compatible alternative is listed in the PF series for this exact configuration — the PF0011/15/28 is the only member with this fuse-drawer, unfiltered IEC 320-C14 layout.
