Bulgin PF0011/15/PC — Power Entry Modules

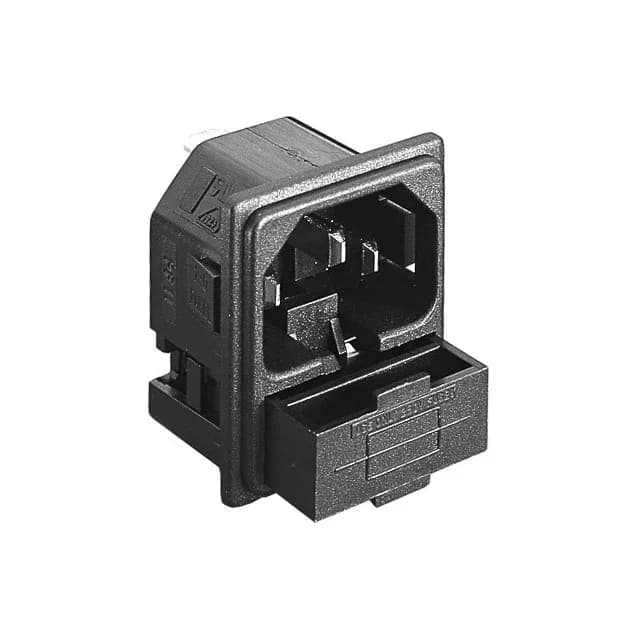

Bulgin PF0011/15/PC IEC 320-C14 Power Entry Module

MPNPF0011/15/PC
Active

Bulgin PF series power entry module, order code PF0011/15/PC, IEC 320-C14 receptacle, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount snap-in with through-hole right-angle solder termination, fuse drawer included.

$7.9300Ref. price · indicative, final on quote
Bulgin PF0011/15/PC datasheet (PDF)
RoHSROHS3 Compliant
SeriesPF
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

PF0011/15/PC specifications
ParameterValue
SeriesPF
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In; Through Hole, Right Angle
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 27.30mm x 31.12mm
Material flammability ratingUL94 V-0
Approval agencyCSA, ENEC, UL, VDE
PackageBulk
TerminationSolder
Panel thickness0.059\" (1.50mm)
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerDrawer Included
Positions3

Product details

IEC 320-C14 inlet with integrated fuse drawer

The PF0011/15/PC is the 3-position IEC 320-C14 member of Bulgin's PF series power entry module line, combining a male-blade receptacle with a built-in fuse drawer. Rated 10 A at 250 VAC unfiltered, the module accepts a 5×20 mm fuse (not included) and mounts via panel snap-in with through-hole right-angle solder tails.

Panel cutout and fuse drawer details

The module requires a rectangular panel cutout of 27.30 mm × 31.12 mm and fits panel thicknesses of 1.50 mm (0.059 in).

Frequently asked questions

What compliance documentation does Bulgin provide for PF0011/15/PC?

The module is RoHS3 compliant and carries safety approvals from CSA, ENEC, UL, and VDE.

What is the panel cutout size required for PF0011/15/PC?

The required panel cutout is rectangular, measuring 27.30 mm × 31.12 mm, for a panel thickness of 1.50 mm.
