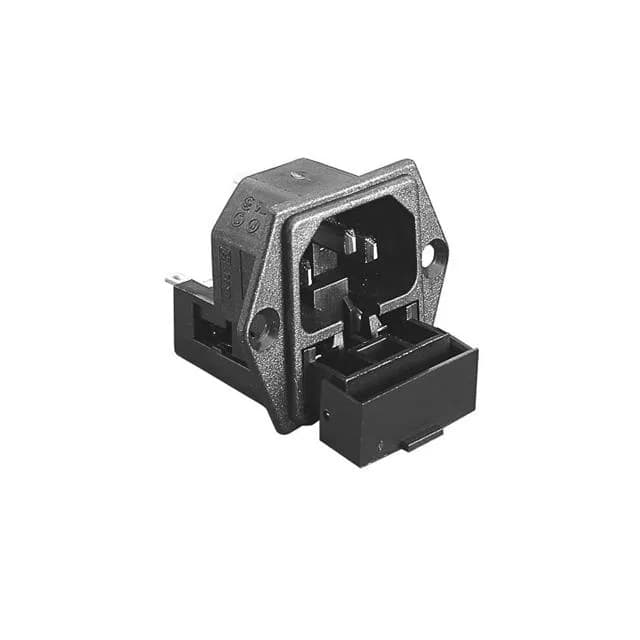

Bulgin PF series IEC 320-C14 power entry module, order code PF0030/PC, 3 positions, 10 A at 250 VAC, unfiltered commercial grade, panel mount with flange, through-hole right-angle solder termination, twin fused holder.
| Parameter | Value |
|---|---|
| Series | PF |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 28.10mm x 31.30mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, UL |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.157\" (4.00mm) |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The PF0030/PC is the 3-position IEC 320-C14 receptacle member of Bulgin's PF series, rated 10 A at 250 VAC for unfiltered commercial-duty power entry. It carries a twin fused holder accommodating two fuses (fuses not included) and mounts via a panel flange with through-hole right-angle solder termination.
The rectangular panel cutout measures 28.10 mm x 31.30 mm for a panel thickness of 0.157" (4.00 mm).
The module is ROHS3 Compliant and carries CSA and UL approvals per the listed agency markings.
