Panel-mount unfiltered inlet with twin fuse drawer

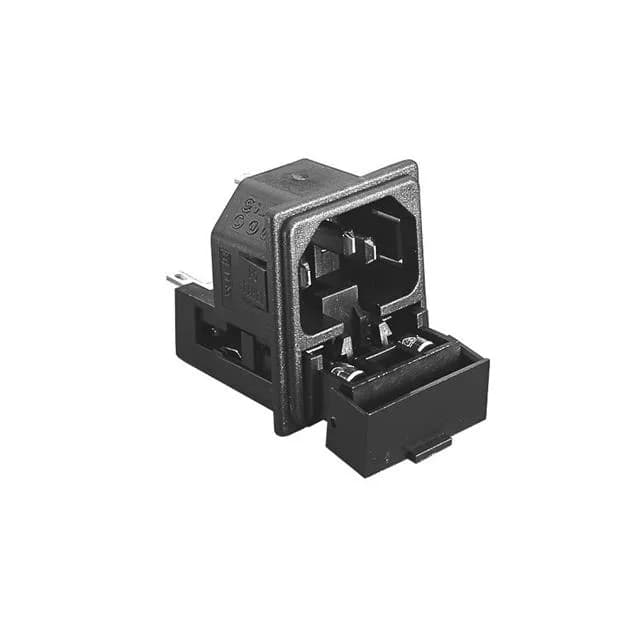

The PF0033/10/63 is a 3-position IEC 320-C14 receptacle from Bulgin's PF series, designed for panel-mount snap-in installation with a quick connect 0.250" (6.3mm) termination. Rated 10 A at 250 VAC, the unfiltered module includes a twin fused drawer (fuse not included) and carries UL94 V-0 flammability rating with CSA and UL approvals.
Fuse accommodation and panel fit
The integrated twin fused drawer accepts two fuses (not supplied) and requires a rectangular panel cutout of 27.30 mm x 31.12 mm; the panel thickness must be 0.039" (1.00 mm) for proper snap-in retention.
