Bulgin PF0033/15/63 — Power Entry Modules

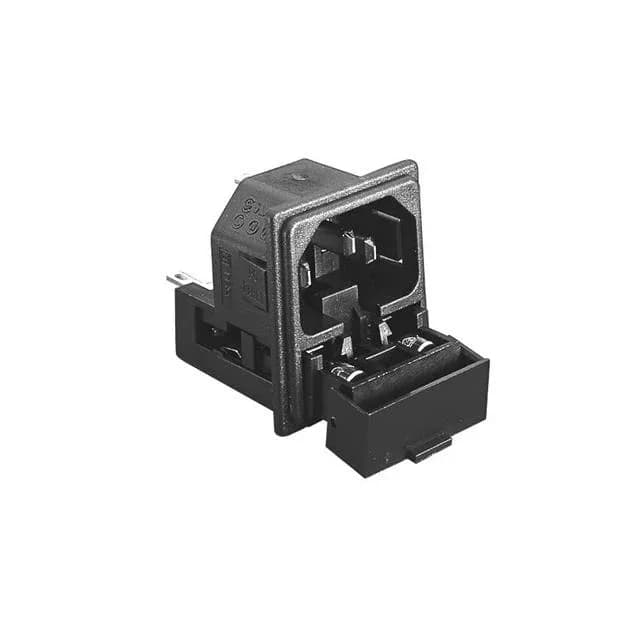

Bulgin PF0033/15/63 IEC 320-C14 Power Entry Module

MPNPF0033/15/63
Active

Bulgin PF series IEC 320-C14 power entry module, order code PF0033/15/63, 3 positions, 10 A at 250 VAC, unfiltered commercial, panel mount snap-in, quick connect 0.250" (6.3mm) termination, twin fused drawer included.

$9.7800Ref. price · indicative, final on quote
Bulgin PF0033/15/63 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

PF0033/15/63 specifications
ParameterValue
SeriesPF
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 27.30mm x 31.12mm
Material flammability ratingUL94 V-0
Approval agencyCSA, UL
PackageBulk
TerminationQuick Connect - 0.250\" (6.3mm)
Panel thickness0.059\" (1.50mm)
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerDrawer Included, Twin Fused
Positions3

Product details

Panel-mount IEC inlet with integrated fuse drawer

The PF0033/15/63 is a 3-position IEC 320-C14 receptacle from Bulgin's PF series, combining a male-blade power inlet with a twin fused drawer in a single panel-mount module. Rated 10 A at 250 VAC, the unfiltered commercial inlet terminates via 0.250" (6.3mm) quick-connect tabs and snaps into a rectangular panel cutout of 27.30 mm x 31.12 mm.

Fuse accommodation and panel fit

The module accepts two 5 x 20 mm fuses (not included) via the integrated drawer, allowing overcurrent protection at the inlet without a separate fuse holder.

Frequently asked questions

What compliance documentation is available for PF0033/15/63?

The module carries CSA and UL approvals and is ROHS3 compliant.

What is the panel cutout size for PF0033/15/63?

The rectangular panel cutout is 27.30 mm x 31.12 mm with a panel thickness of 0.059" (1.50 mm) required for snap-in retention.
