Bulgin PF0033/20/63 — Power Entry Modules

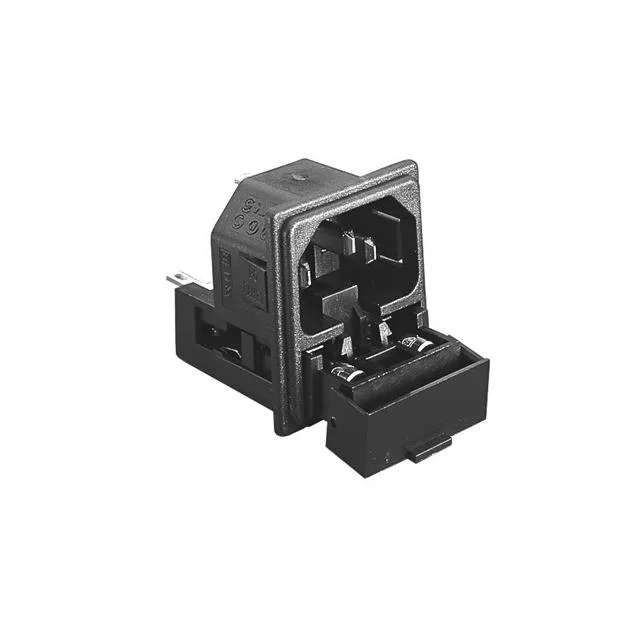

Bulgin PF0033/20/63 Power Entry Module, IEC 320-C14, 3 Pos

MPNPF0033/20/63
Active

Bulgin PF series power entry module, order code PF0033/20/63, IEC 320-C14 receptacle, 3 positions, 10 A at 250 VAC, unfiltered commercial, panel mount snap-in, quick connect 0.250" (6.3mm) termination.

$9.7800Ref. price · indicative, final on quote
Bulgin PF0033/20/63 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

PF0033/20/63 specifications
ParameterValue
SeriesPF
Filter typeUnfiltered - Commercial
MountingPanel Mount, Snap-In
Connector typeIEC 320-C14
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Panel cutoutRectangular - 27.30mm x 31.12mm
Material flammability ratingUL94 V-0
Approval agencyCSA, UL
PackageBulk
TerminationQuick Connect - 0.250\" (6.3mm)
Panel thickness0.079\" (2.00mm)
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerDrawer Included, Twin Fused
Positions3

Product details

IEC 320-C14 Panel Entry with Twin Fuse Drawer

The PF0033/20/63 is the 3-position IEC 320-C14 member of Bulgin's PF series of power entry modules, designed for unfiltered commercial applications. It carries a twin fused drawer (fuse not included), rated 10 A at 250 VAC, and terminates via quick connect 0.250" (6.3mm) tabs. Panel mount snap-in fits 0.079" (2.00mm) panel thickness with a rectangular cutout 27.30mm x 31.12mm.

Fused Drawer Detail

The integrated twin fused drawer accepts two fuses (not included) and is included with the module, providing overcurrent protection per the circuit design.

Panel Fit and Cutout

The snap-in panel mount requires a rectangular cutout 27.30mm x 31.12mm and accepts panels 0.079" (2.00mm) thick.

Frequently asked questions

What compliance documentation does Bulgin provide for PF0033/20/63?

The module is RoHS3 compliant and carries CSA and UL approvals.

What is the panel cutout size for PF0033/20/63?

The rectangular cutout is 27.30mm x 31.12mm for a panel thickness of 0.079" (2.00mm).
