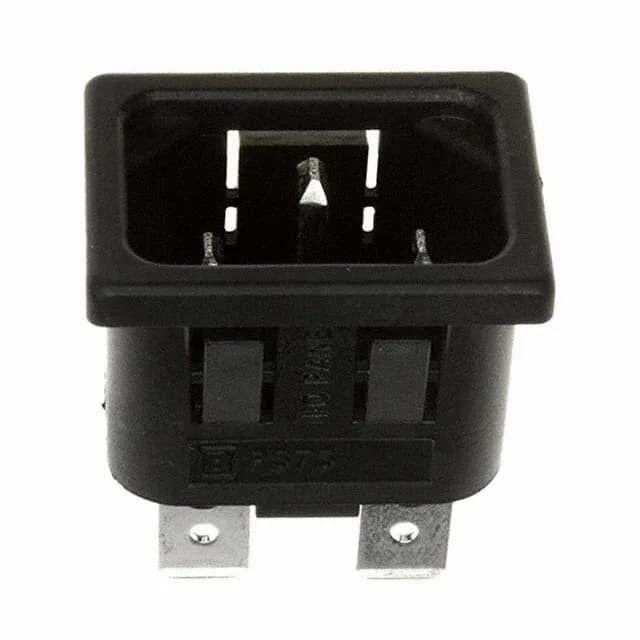

Bulgin PX series IEC 320-C14 power inlet, order code PX0575/10/63, 3 positions, 10 A at 250 VAC, unfiltered, quick-connect 0.250" (6.3mm) termination, panel mount snap-in, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.40mm x 19.80mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CCC, CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.039\" (1.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0575/10/63 is a 3-position IEC 320-C14 receptacle from Bulgin's PX series, accepting male blades for unfiltered AC power entry. Rated 10 A at 250 VAC, it terminates via 0.250" (6.3mm) quick-connect tabs and mounts with a snap-in fit into a rectangular panel cutout 27.40 mm x 19.80 mm.
The PX0575/10/63 carries ROHS3 compliance and approvals from CCC, CSA, ENEC, UL, and VDE. The housing material is rated UL94 V-0.
