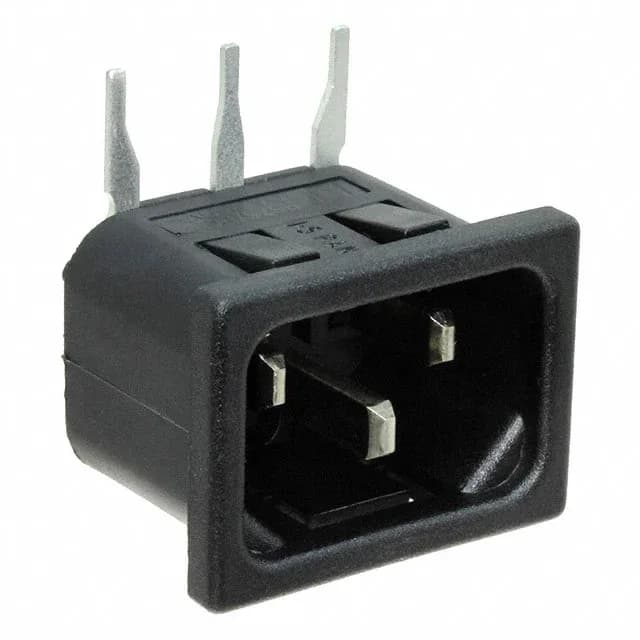

Bulgin PX series IEC 320-C14 power entry module, order code PX0575/15/PC, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount snap-in with through-hole right-angle solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.40mm x 19.80mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CCC, CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0575/15/PC is a 3-position IEC 320-C14 receptacle from the Bulgin PX series, accepting male blades. It mounts via panel snap-in into a rectangular cutout 27.40 mm x 19.80 mm, with a panel thickness of 0.059" (1.50 mm), and terminates through solder to a right-angle PCB. Rated 10 A at 250 VAC, unfiltered commercial type, with a UL94 V-0 flammability-rated housing.
The PX0575/15/PC carries ROHS3 compliance and approvals from CCC, CSA, ENEC, UL, and VDE.
The rectangular panel cutout is 27.40 mm x 19.80 mm for a panel thickness of 0.059" (1.50 mm).
