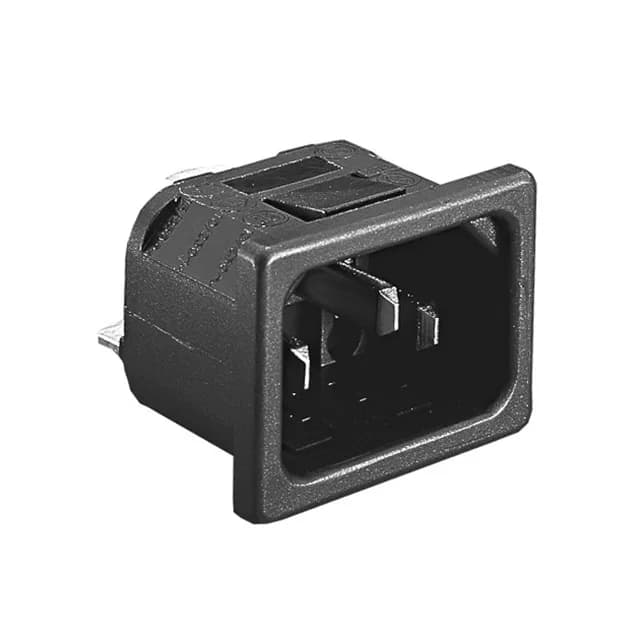

Bulgin PX series power entry module, order code PX0575/20/63, IEC 320-C14 receptacle, male blades, 3 positions, 10 A, 250 VAC, quick connect - 0.250" (6.3mm) termination, panel mount snap-in.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.40mm x 19.80mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CCC, CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.079\" (2.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0575/20/63 is the 3-position IEC 320-C14 receptacle member of Bulgin's PX series, rated 10 A at 250 VAC for unfiltered commercial-duty power entry.
The rectangular panel cutout measures 27.40 mm x 19.80 mm and accepts panel thickness of 0.079" (2.00 mm); the snap-in retention eliminates the need for mounting hardware.
The PX0575/20/63 carries approvals from CCC, CSA, ENEC, UL, and VDE, and is ROHS3 compliant.
No, this inlet does not accommodate a fuse; it is an unfiltered commercial-grade IEC 320-C14 receptacle.
