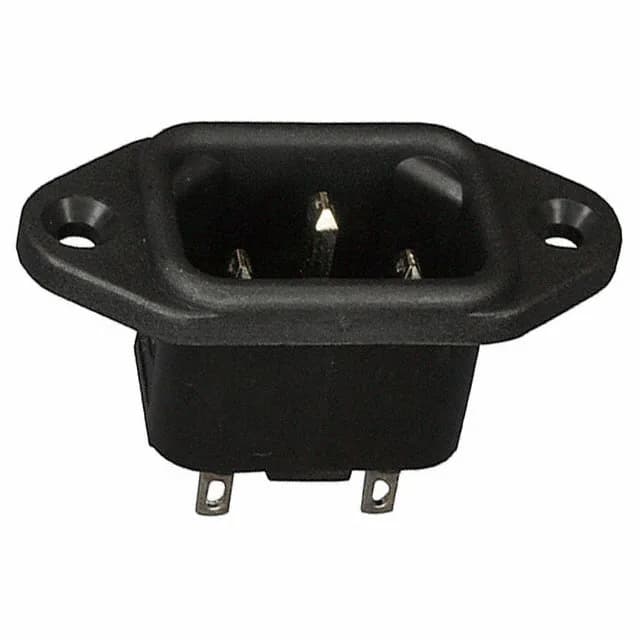

Bulgin PX series power entry module, order code PX0580/28, IEC 320-C14 receptacle, male blades, 3 positions, 10 A at 250 VAC, panel mount flange, solder termination, unfiltered commercial grade.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Features | Front or Rear Side Mount |
| Termination | Solder |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0580/28 is the 3-position IEC 320-C14 receptacle in Bulgin's PX series of power entry modules, rated 10 A at 250 VAC for unfiltered commercial-duty AC mains entry. The panel-mount flange accepts front or rear side mounting with a variable-size cutout; solder termination connects directly to the appliance wiring.
The PX0580/28 is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE.
