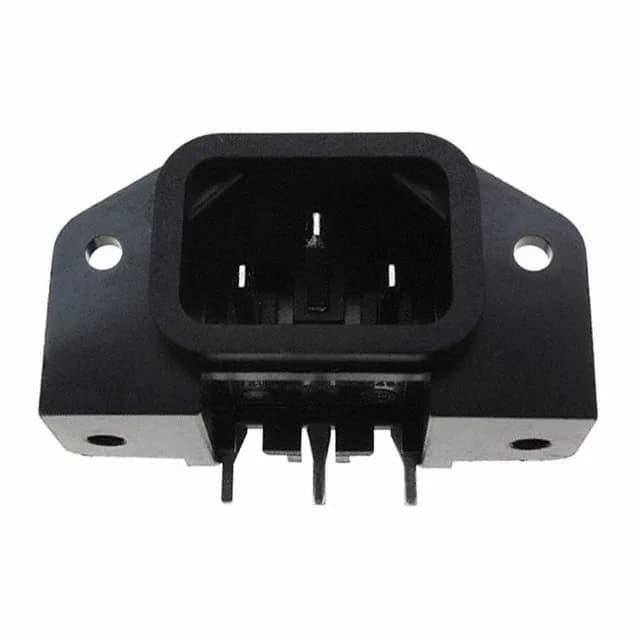

Bulgin PX series power entry module, order code PX0580/PC, IEC 320-C14 receptacle, 3 positions, 10 A at 250 VAC, unfiltered commercial, panel mount flange with through-hole right-angle solder termination.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange; Through Hole, Right Angle |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 30.25mm x 22.48mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.126\" (3.20mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0580/PC is the 3-position IEC 320-C14 receptacle member of Bulgin's PX series of power entry modules. Rated 10 A at 250 VAC, it mounts through a rectangular panel cutout of 30.25 mm x 22.48 mm and accepts panel thickness up to 3.20 mm.
The flange secures to the panel with screws; the through-hole right-angle solder tails exit the rear for PCB connection.
Approvals include CSA, ENEC, UL, and VDE.
The PX0580/PC is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE.
