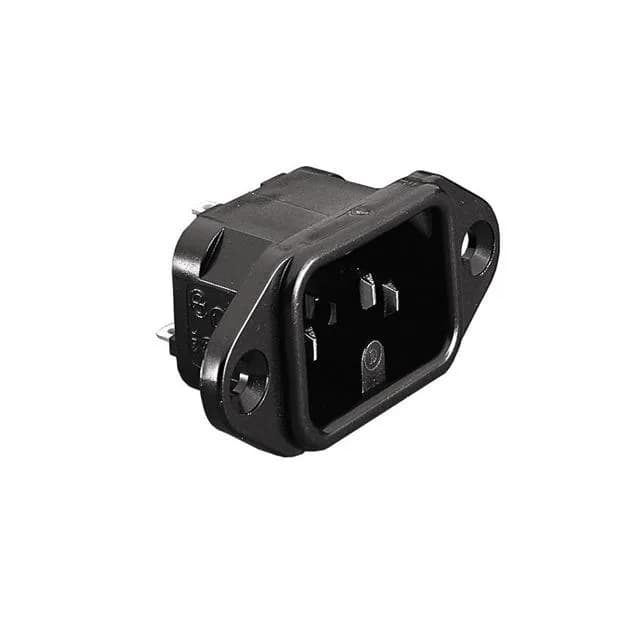

Bulgin PX series IEC 320-C16 power inlet, order code PX0590/63, 3 positions, male blades, 10 A, 250 VAC, unfiltered commercial, panel mount flange, quick connect 0.250" (6.3 mm) termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C16 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Features | Front or Rear Side Mount |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0590/63 is a 3-position IEC 320-C16 power inlet from Bulgin's PX series, designed for panel mount with flange. It accepts male blades and terminates via quick connect 0.250" (6.3 mm) tabs. Rated 10 A at 250 VAC, unfiltered commercial grade, with a UL94 V-0 flammability-rated housing. No fuse accommodation.
The inlet carries CSA, ENEC, UL, and VDE approvals. ROHS3 compliant. The housing material meets UL94 V-0.
