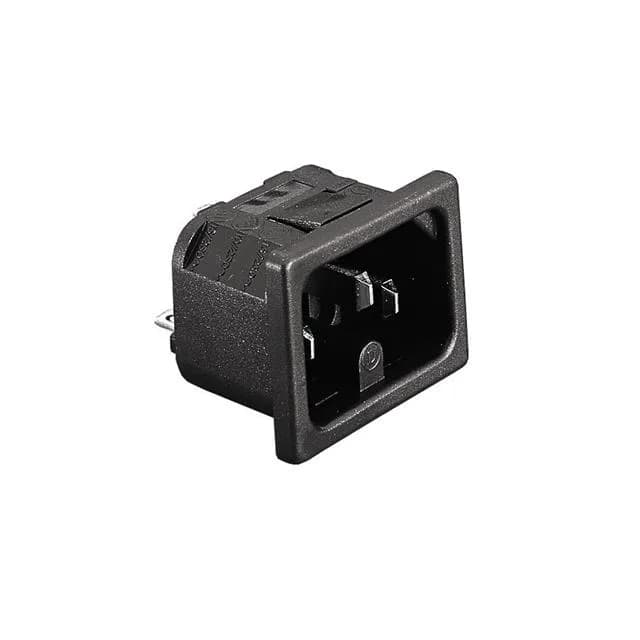

Bulgin PX series power entry module, order code PX0595/20/63, IEC 320-C16 receptacle, male blades, 3 positions, 10 A, 250 VAC, panel mount snap-in, quick connect 0.250" (6.3mm) termination, unfiltered commercial.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C16 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 27.40mm x 19.80mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.079\" (2.00mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0595/20/63 is a 3-position IEC 320-C16 receptacle from Bulgin's PX series, designed for unfiltered commercial power entry. Rated 10 A at 250 VAC, it mounts via snap-in to a panel thickness of 0.079" (2.00 mm) and terminates with quick-connect tabs sized 0.250" (6.3 mm).
The PX0595/20/63 is ROHS3 Compliant and carries approvals from CSA, ENEC, UL, and VDE.
The panel cutout is rectangular, measuring 27.40 mm x 19.80 mm.
