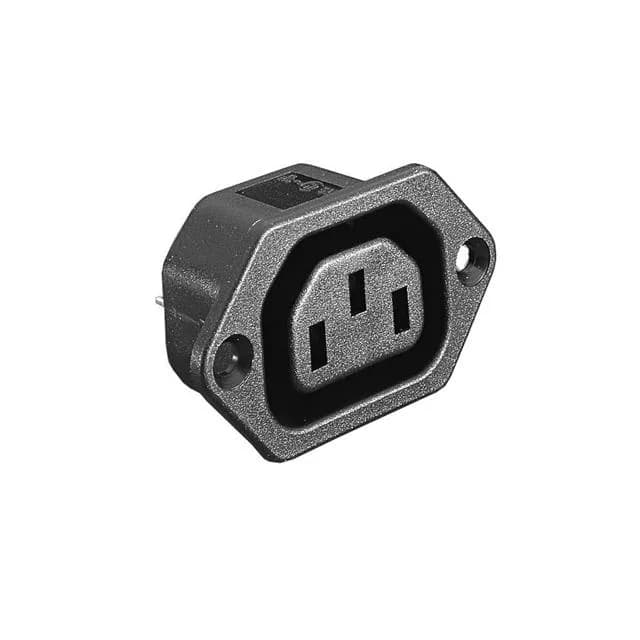

Bulgin PX series power entry module, order code PX0675/28, IEC 320-2-2/F receptacle, 3 positions, 10 A, 250 VAC, unfiltered commercial, panel mount flange, solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.26mm x 24.77mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0675/28 is a 3-position IEC 320-2-2/F receptacle from Bulgin's PX series, rated 10 A at 250 VAC for unfiltered commercial service. Mounts via panel flange with a rectangular cutout of 32.26 mm x 24.77 mm; termination is solder to the appliance-side leads.
