Bulgin PX0686 — Power Entry Modules

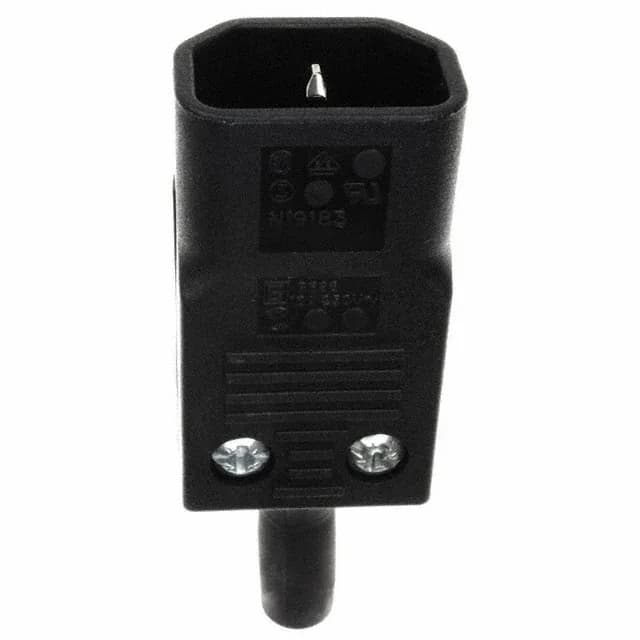

Bulgin PX0686 IEC Plug, 3 Pos, 10 A, 250 VAC, Screw Term

MPNPX0686
Active

Bulgin PX series IEC 320-2-2/E plug, order code PX0686, 3 positions, 10 A, 250 VAC, screw termination, free-hanging (in-line) mounting, unfiltered commercial, UL94 V-0.

$8.7600Ref. price · indicative, final on quote
Bulgin PX0686 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPX
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

PX0686 specifications
ParameterValue
SeriesPX
Filter typeUnfiltered - Commercial
MountingFree Hanging (In-Line)
Connector typeIEC 320-2-2/E
Voltage rating - appliance inlet250VAC
Current rating - appliance inlet10A
Material flammability ratingUL94 V-0
Approval agencyCSA, ENEC, RCM, UL, VDE
PackageBulk
TerminationScrew
Accomodates a fuseNo
Positions3

Product details

10 A, 250 VAC IEC inlet plug

The PX0686 is a 3-position male-blade plug from Bulgin's PX series, wired for IEC 320-2-2/E inlets and rated 10 A at 250 VAC. Screw termination and a free-hanging in-line body simplify field wiring without a panel cutout.

Screw termination, free-hanging body

The screw terminals accept field wiring directly — no crimp tool required. The free-hanging (in-line) mount suits cable assemblies where the plug is not panel-locked. The housing carries UL94 V-0 flammability rating and approvals from CSA, ENEC, RCM, UL, and VDE.

Frequently asked questions

Where can I buy PX0686 and how do I get a price?

The PX0686 is an active Bulgin part available through distribution. Submit an RFQ with the target quantity for a current price and lead time.

What compliance documentation does Bulgin provide for PX0686?

The PX0686 carries RoHS3 compliance and is approved by CSA, ENEC, RCM, UL, and VDE. The housing material meets UL94 V-0.
