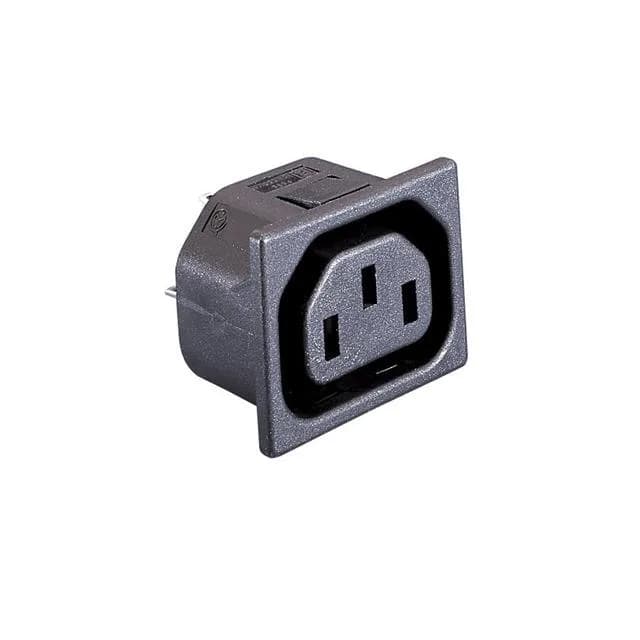

Bulgin PX series power entry module, order code PX0695/15/28, IEC 320-2-2/F receptacle, 3 positions, 10 A at 250 VAC, unfiltered commercial, panel mount snap-in, solder termination.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.26mm x 24.77mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Solder |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0695/15/28 is the 3-position unfiltered member of Bulgin's PX series IEC 320-2-2/F power entry receptacle line. Rated 10 A at 250 VAC, it mounts via snap-in into a rectangular panel cutout 32.26 mm x 24.77 mm and accepts panel thickness 0.059" (1.50 mm).
The PX0695/15/28 is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE.
The panel cutout is rectangular, 32.26 mm x 24.77 mm, and accepts panel thickness of 0.059" (1.50 mm).
