Bulgin PX0748/P
MPNPX0748/P
Active

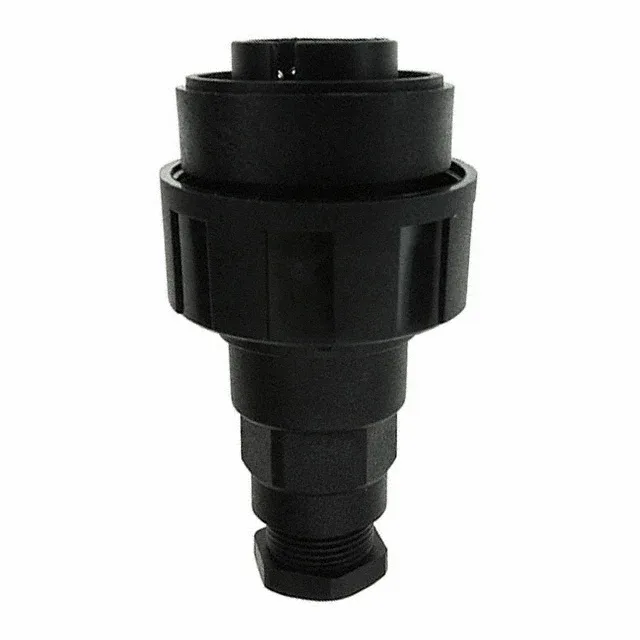

CONN PLUG MALE 4POS NICKEL SCREW
$22.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuccaneer®, Standard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buccaneer®, Standard |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 277VAC/DC |
| Current rating | 6A |
| IP rating | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.236\" ~ 0.315\" (6.00mm ~ 8.00mm) |
| Operating temperature | -20°C ~ 70°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon, Glass Filled |
| Insert material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Screw |
| Positions | 4 (Power) |
| Contact finish - mating | Nickel |
