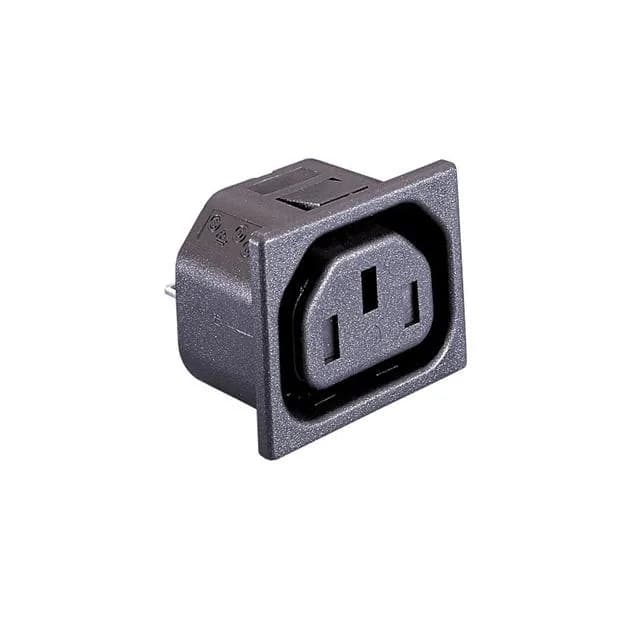

Bulgin PX series IEC 320-2-2/F power entry module, order code PX0783/15/63, 3 positions, 10 A, 250 VAC, unfiltered commercial, shuttered, quick-connect 0.250" (6.3 mm) termination, panel mount snap-in.
| Parameter | Value |
|---|---|
| Series | PX |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 32.26mm x 24.77mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Features | Shuttered |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.059\" (1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The PX0783/15/63 is a 3-position IEC 320-2-2/F receptacle from Bulgin's PX series, designed for panel-mount snap-in installation with quick-connect 0.250" (6.3 mm) termination. Rated 10 A at 250 VAC, the unfiltered commercial inlet carries a shuttered feature and is approved by CSA, ENEC, UL, and VDE.
The PX0783/15/63 is ROHS3 compliant and carries approvals from CSA, ENEC, UL, and VDE.
