Bulgin PX0921/07/S
MPNPX0921/07/S
Active

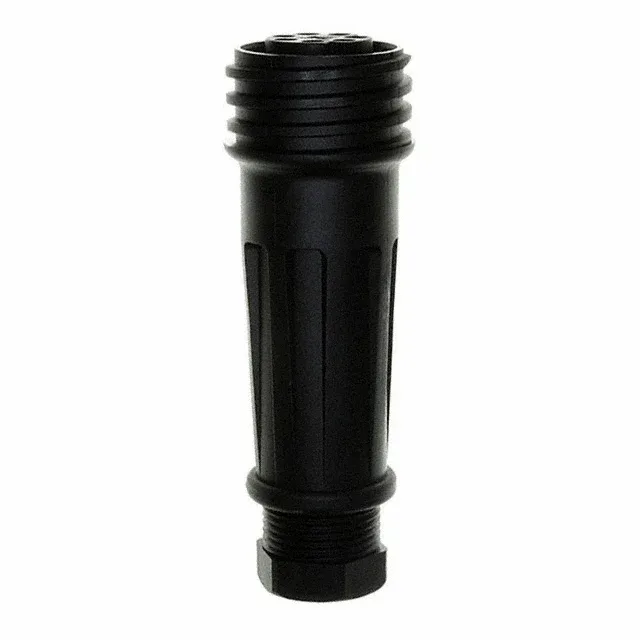

CONN RCPT FMALE 7P NICKEL SCREW
$63.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuccaneer® 900
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buccaneer® 900 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 430VAC/DC |
| Current rating | 32A |
| IP rating | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.276\" ~ 0.512\" (7.00mm ~ 13.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, UV Resistant |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Screw |
| Positions | 7 (6 Power + PE) |
| Contact finish - mating | Nickel |
