Bulgin PXMBNI12FIM04ASCPG9
MPNPXMBNI12FIM04ASCPG9
Active

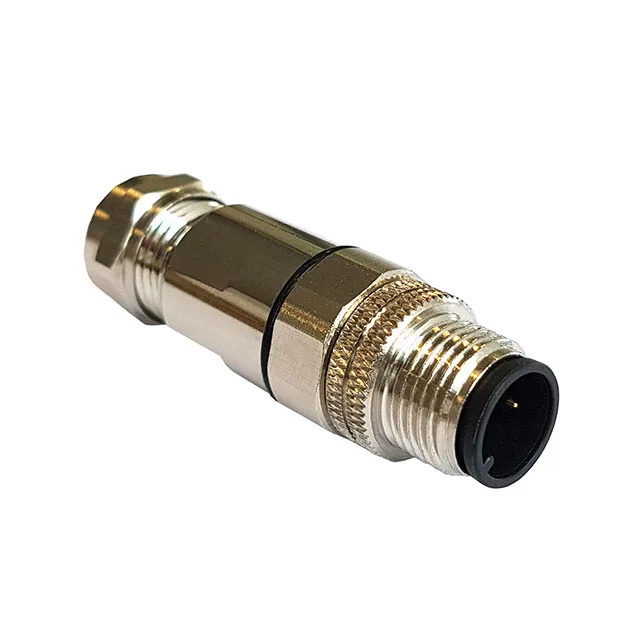

CONN RCPT MALE 4POS SOLDER CUP
$44.3Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuccaneer® M12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buccaneer® M12 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.181\" ~ 0.315\" (4.60mm ~ 8.00mm) |
| Operating temperature | -25°C ~ 80°C |
| Color | Silver |
| Shell material | Brass |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Brass, Nickel |
| Package | Bulk |
| Features | Backshell |
| Orientation | A |
| Termination | Solder Cup |
| Applications | Industrial, Instrumentation, Medical |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
