WTB2S-W2-GN - c3controls
MPNWTB2S-W2-GN
Active

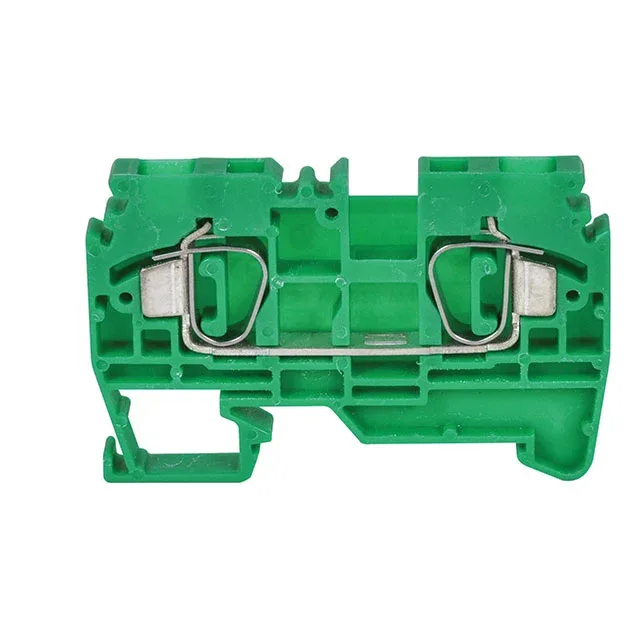

20A FEED THRU SPRNG CLMP GRN 5MM
$30.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | TB |
| Voltage - UL | 600V |
| Voltage - IEC | 750V |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Terminal - width | 5.0mm |
| Wire gauge or range - AWG | 14-22 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Color | Green |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 9mm |
| Termination style | Push In, Spring |
| Positions | 2 |
