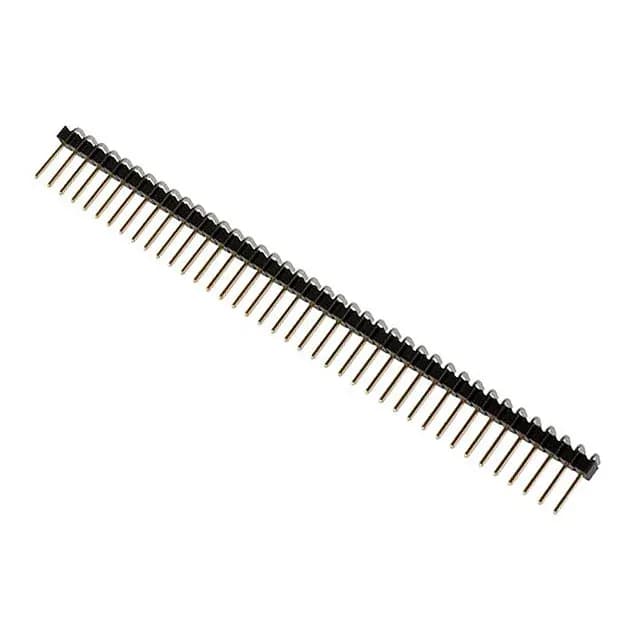

Chip Quik Inc. HDR100IMP40M-G-RA-TH
MPNHDR100IMP40M-G-RA-TH
Active
CONN HEADER R/A 40POS 2.54MM
$0.7900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesProto-Advantage
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Proto-Advantage |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Insulation height | 0.098\" (2.50mm) |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Wire Wrap |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.236\" (6.00mm) |
