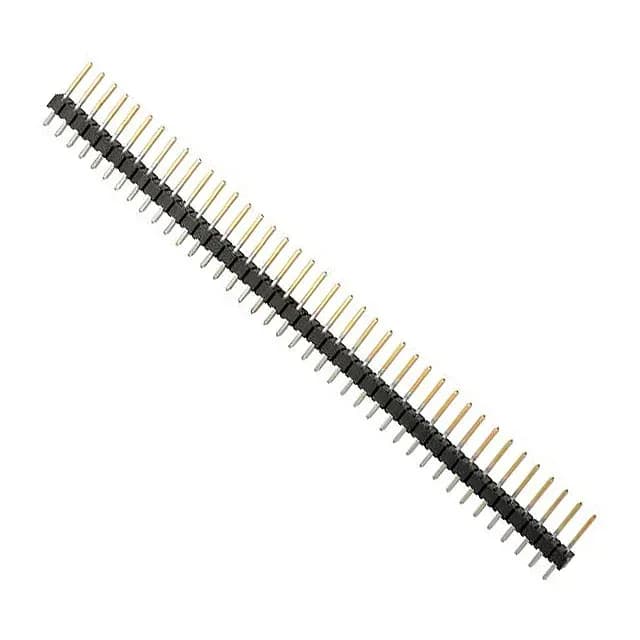

Chip Quik Inc. HDR100IMP40M-G-V-TH

Chip Quik Inc. HDR100IMP40M-G-V-TH

MPN HDR100IMP40M-G-V-TH
Active

CONN HEADER VERT 40POS 2.54MM

$0.6900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesProto-Advantage
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

HDR100IMP40M-G-V-TH key specifications
ParameterValue
SeriesProto-Advantage
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Insulation height0.100\" (2.54mm)
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1

All specifications

HDR100IMP40M-G-V-TH additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Positions40
Contact finish - postGold
Contact length - post0.118\" (3.00mm)
Overall contact length0.454\" (11.54mm)
Contact finish - matingGold
Contact length - mating0.236\" (6.00mm)
MPN
HDR100IMP40M-G-V-TH
