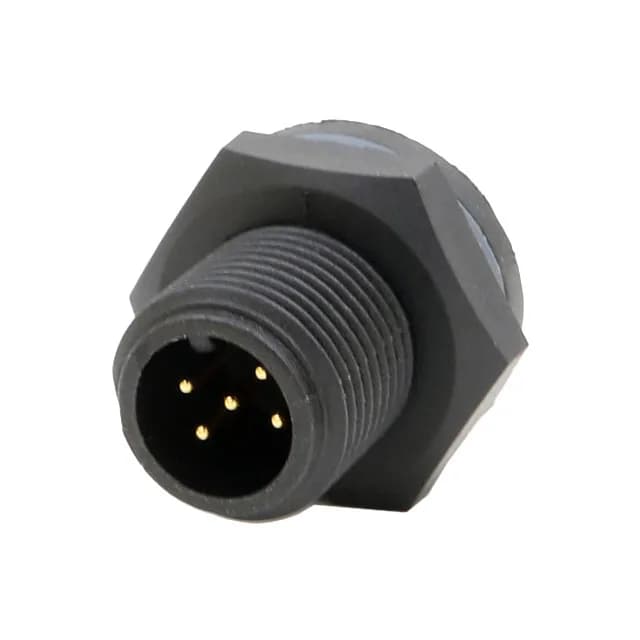

Chogori Technologies Inc. 21005515-02
MPN21005515-02
Active
CONN RCPT MALE 5POS GOLD SOLDER
$4.0900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMINI
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MINI |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 50V |
| Current rating | 2A |
| IP rating | IP67/IP68 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -45°C ~ 105°C |
| Color | Black |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass, Phosphor Bronze |
| Primary material | Plastic |
| Package | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Communication Systems, Industrial, Lighting, Medical |
| Positions | 5 |
| Contact finish - mating | Gold |
