Chogori Technologies Inc. 22005635-02
MPN22005635-02
Active

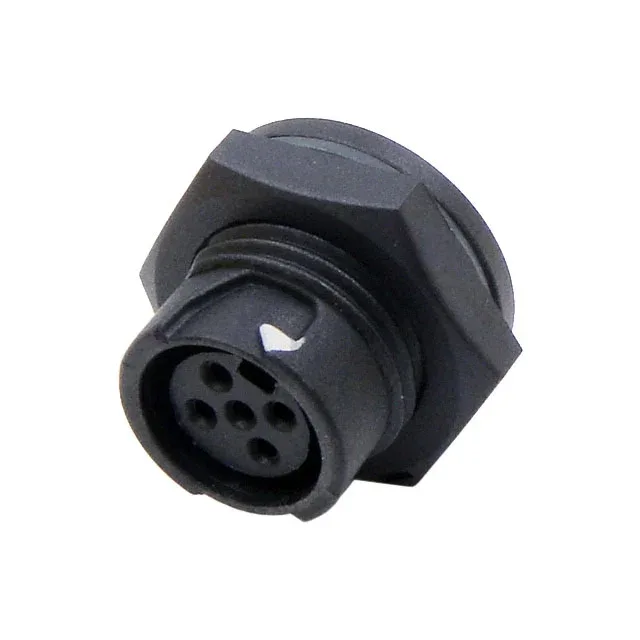

CONN RCPT FMALE 5POS GOLD SOLDER
$6.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStandard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Standard |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Twist |
| Voltage rating | 60V |
| Current rating | 5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -45°C ~ 105°C |
| Color | Black, Blue |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass, Phosphor Bronze |
| Primary material | Plastic |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Communication Systems, Industrial, Lighting, Marine |
| Positions | 5 |
| Contact finish - mating | Gold |
