Chogori Technologies Inc. 23004211-01
MPN23004211-01
Active

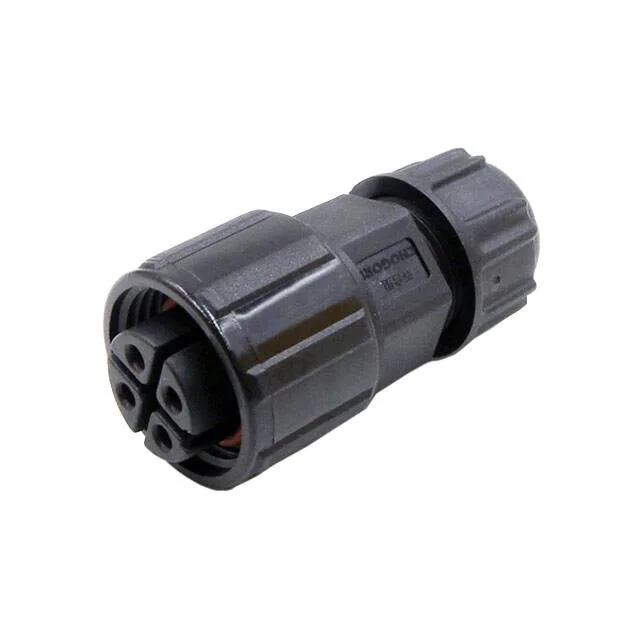

CONN PLUG FMALE 4POS SOLDER CUP
$11.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMiddle
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Middle |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 300V |
| Current rating | 15A |
| IP rating | IP68 - Dust Tight, Waterproof |
| Cable opening | 0.138\" ~ 0.256\" (3.50mm ~ 6.50mm) |
| Operating temperature | -45°C ~ 105°C |
| Color | Black |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass, Phosphor Bronze |
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA66), Nylon 6/6 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial, Lighting, Marine |
| Positions | 4 |
| Contact finish - mating | Gold |
