Chogori Technologies Inc. 24002231-02
MPN24002231-02
Active

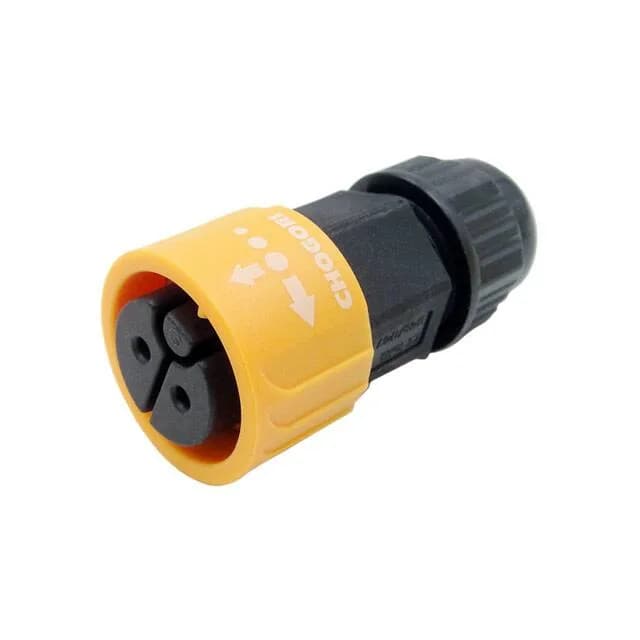

CONN PLUG FMALE 2POS SOLDER CUP
$11.5300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLarge
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Large |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Push-Twist |
| Voltage rating | 300V |
| Current rating | 20A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.256\" ~ 0.413\" (6.50mm ~ 10.50mm) |
| Operating temperature | -45°C~105°C |
| Color | Black, Yellow |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass, Phosphor Bronze |
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA66), Nylon 6/6 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial, Lighting, Marine |
| Positions | 2 |
| Contact finish - mating | Gold |
