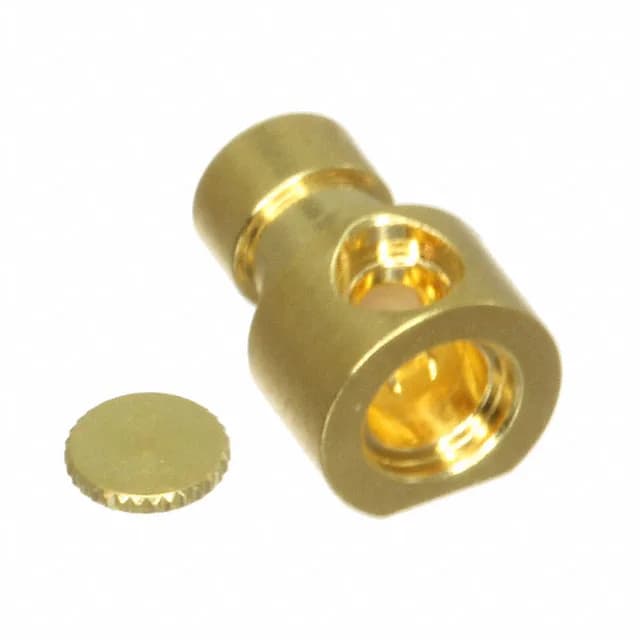

Cinch Connectivity Solutions Johnson 125-0593-101
MPN125-0593-101
Active
$16.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 325 V |
| Frequency - max | 20 GHz |
| Cable group | RG-405 (.086 Semi Rigid) |
| Operating temperature | -65°C ~ 165°C |
| Body material | Beryllium Copper |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Full Detent |
| Includes | 2 pcs - 1 Connector, 1 End Cap |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 100 |
| Insertion loss | 0.54dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
