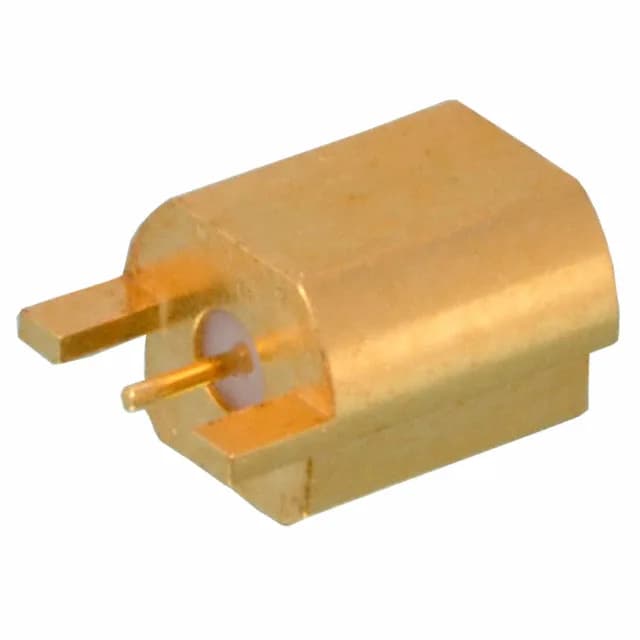

Cinch Connectivity Solutions Johnson 125-0701-801
MPN125-0701-801
Active
$12.1100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Board Edge, Cutout; Surface Mount |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 325 V |
| Frequency - max | 40 GHz |
| Operating temperature | -65°C~165°C |
| Body material | Beryllium Copper |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Features | Full Detent |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 100 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
