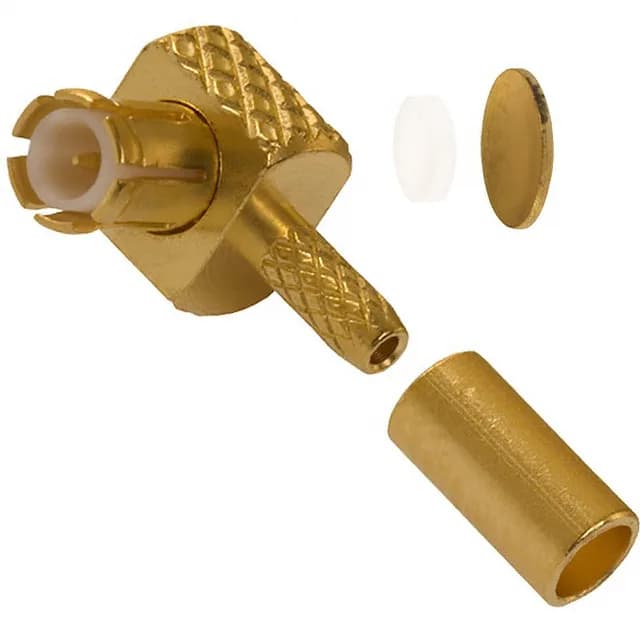

Cinch Connectivity Solutions Johnson 133-3402-101
MPN133-3402-101
Active
$4.3900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 250 V |
| Frequency - max | 6 GHz |
| Cable group | RG-178, 196 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 4 pcs - 1 Connector, 1 End Cap, 1 Insulator, 1 Sleeve |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
