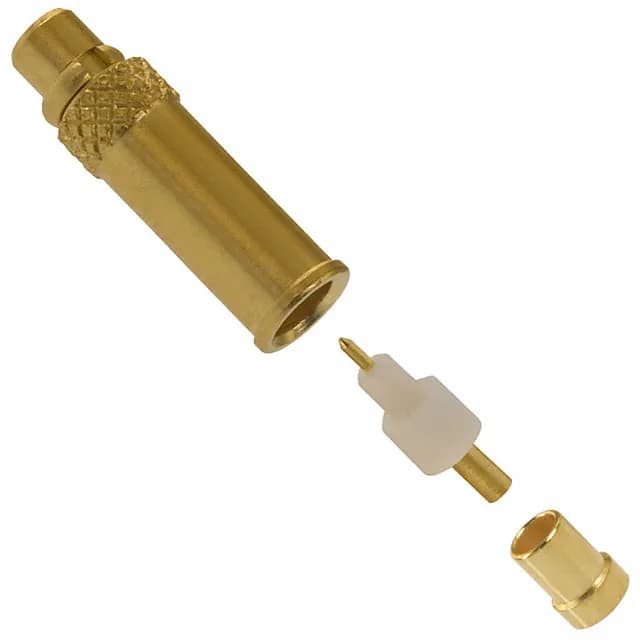

Cinch Connectivity Solutions Johnson 135-3436-001
MPN135-3436-001
Active
$5.3000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 170 V |
| Frequency - max | 6 GHz |
| Cable group | Axon P512479A .047\" Dia. Flexible, Huber K01152-07 |
| Operating temperature | -55°C ~ 155°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insert |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Insertion loss | 0.1dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
