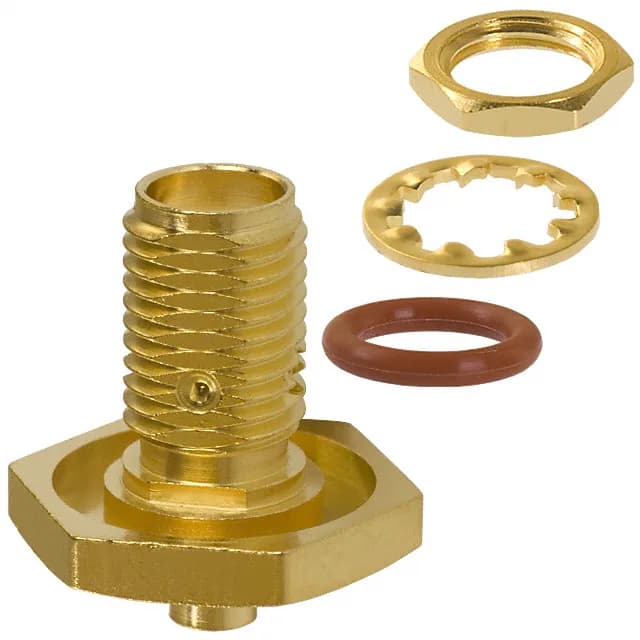

Cinch Connectivity Solutions Johnson 142-0593-421
MPN142-0593-421
Active
$14.8400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 335 V |
| Frequency - max | 25 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-405 (.086 Semi Rigid) |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Push On |
| Center contact plating | Gold |
