Cinch Connectivity Solutions Johnson 142-0701-411
MPN142-0701-411
Active
$9.1900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 335 V |
| Frequency - max | 18 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Extended Insulation |

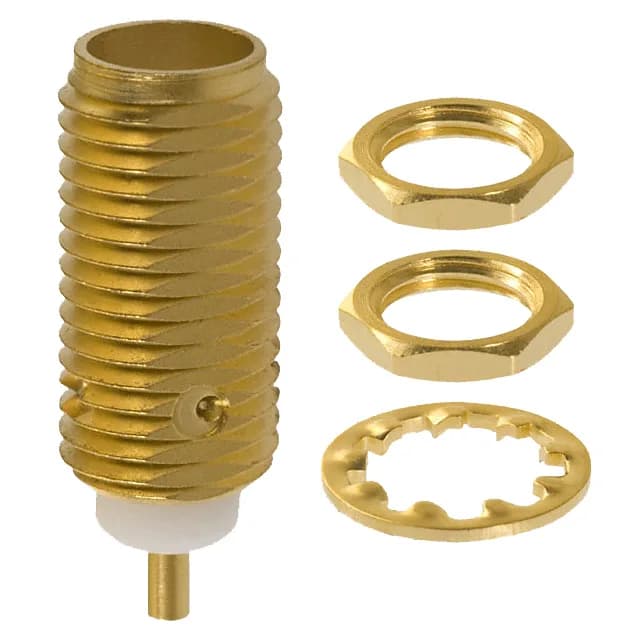

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Cup |
| Center contact plating | Gold |
