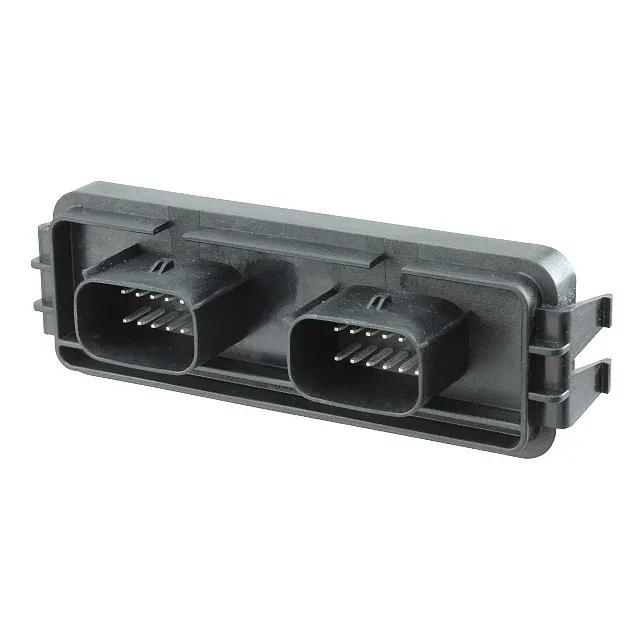

Cinch Connectivity Solutions 5810124011
MPN5810124011
Active
CONN HEADER R/A 24POS 3.5MM
$17.63Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesModICE® MX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ModICE® MX |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Current rating | 10A |
| IP rating | IP67, IP69K |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 1.610\" (40.90mm) |
| Insulation material | Polymer, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 24 (12 + 12) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
