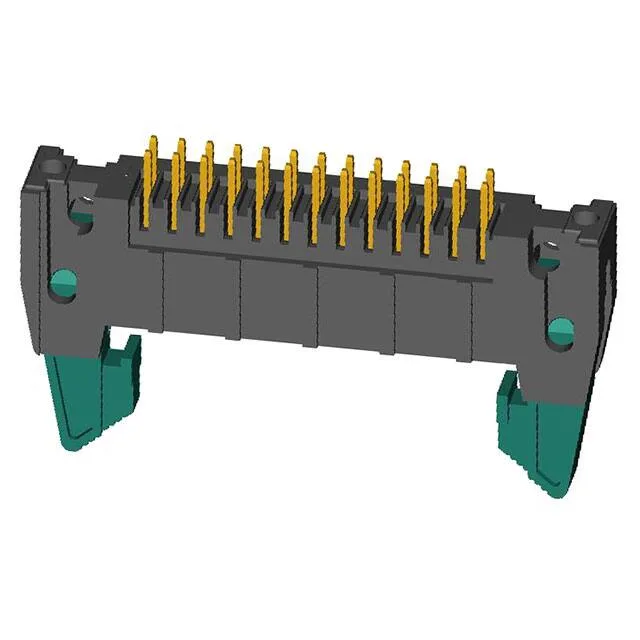

CNC Tech 3010-26-001-12-00
MPN3010-26-001-12-00
Active
CONN HEADER VERT 26POS 2.54MM
$1.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC/DC |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
