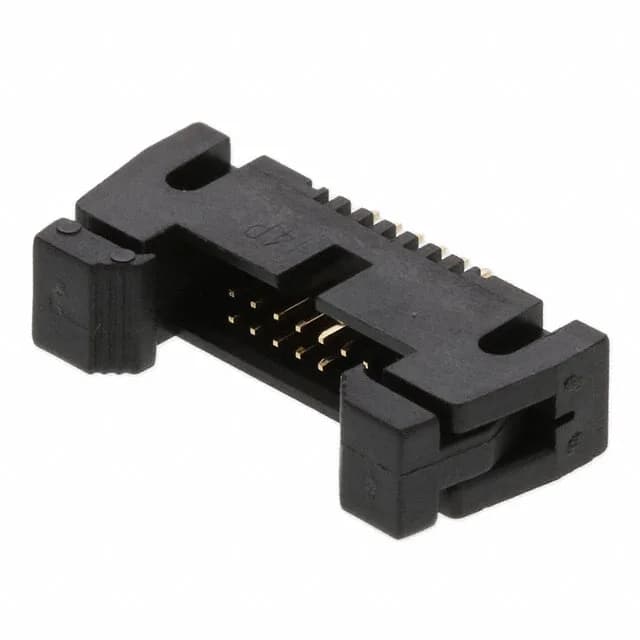

CNC Tech 3210-14-001-12-00
MPN3210-14-001-12-00
Active
CONN HEADER VERT 14POS 1.27MM
$1.3500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation material | Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 14 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact length - post | 0.094\" (2.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
