Conec 164X11789X
MPN164X11789X
Active

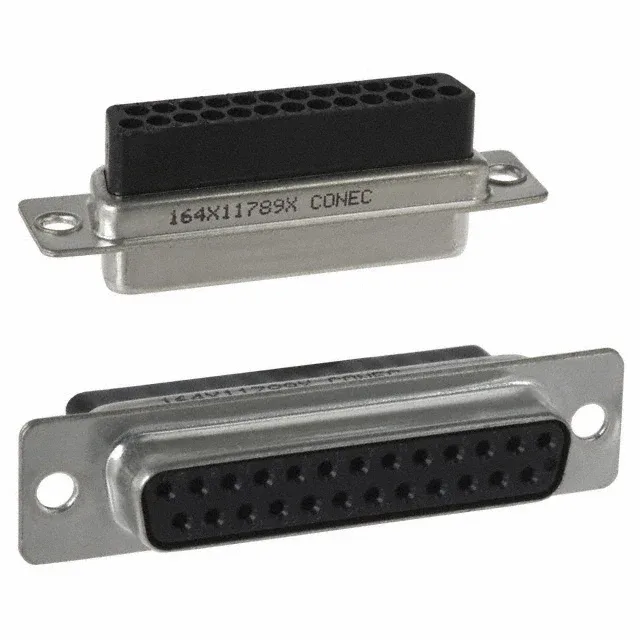

CONN D-SUB HOUSING RCPT 25POS
$4.62Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series164X
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 164X |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle for Female Contacts |
| IP rating | IP20 |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Note | Contacts Not Included |
| Package | Tray |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
| Shell finish thickness | 320µin (8.13µm) |
