Conec 17-10039
MPN17-10039
Active

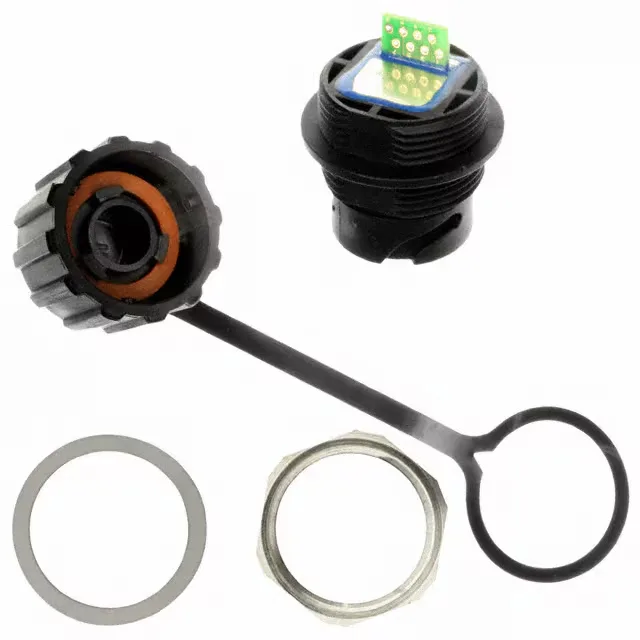

CONN MOD JACK 8P8C SHIELDED
$23.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Bulkhead |
| Connector type | Jack |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Package | Bulk |
| Ratings | Cat5e |
| Features | Circular Bayonet Coupling, Cover, Potted |
| Shielding | Shielded |
| Orientation | Straight |
All specifications
| Parameter | Value |
|---|---|
| Termination | PC Board, Solder |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
