Conec 17-110594
MPN17-110594
Active

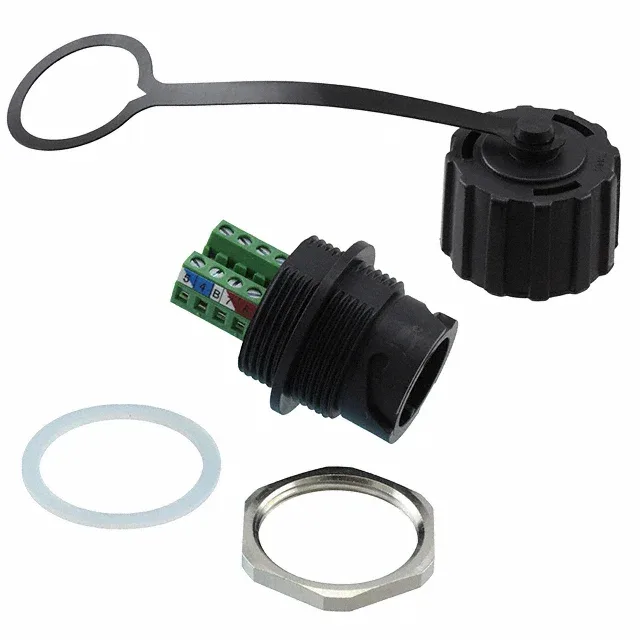

CONN MOD JACK 8P8C SHLD
$23.32Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Bulkhead |
| Connector type | Jack |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polyester |
| Package | Bulk |
| Ratings | Cat5e |
| Features | Circular Bayonet Coupling |
| Shielding | Shielded |
| Orientation | Straight |
All specifications
| Parameter | Value |
|---|---|
| Termination | Terminal Block |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
