Conec 17-400143
MPN17-400143
Active

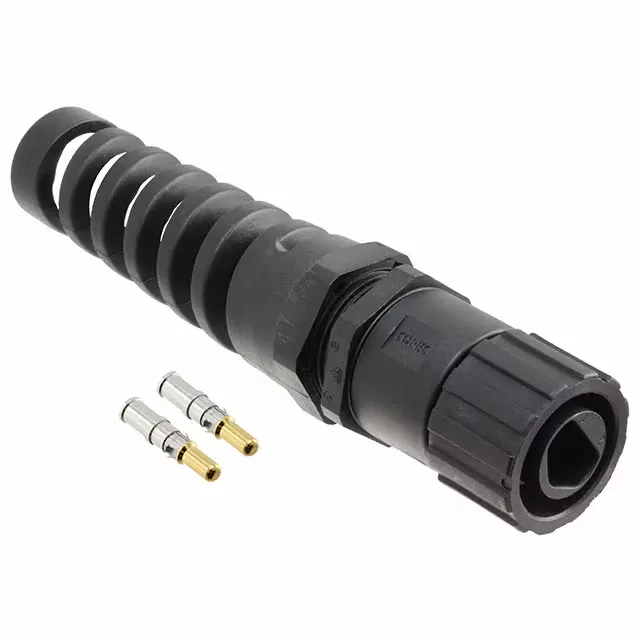

CONN PLUG MALE 2POS GOLD CRIMP
$24.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series17
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 17 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 48VAC/DC |
| Current rating | 30A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.512\" ~ 0.709\" (13.00mm ~ 18.00mm) |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon, Glass Filled |
| Insert material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Backshell material, plating | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Crimp |
| Applications | Automation Control, Industrial, Telecommunications |
| Positions | 2 (Power) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
